A monastery floor plan is really a map of disciplined living: prayer at the center, work along the edges, and movement arranged so the building reinforces the rule. In medieval Europe, the placement of the church, cloister, chapter house, refectory, and dormitory shaped not only architecture but also the rhythm of the day. Here I break down the standard layout, show how different orders changed it, and explain how to read surviving diagrams without forcing them into a one-size-fits-all pattern.
The layout reveals how a monastic community lived and prayed
- The church and cloister usually form the core, with daily movement built around them.
- The east, south, and west ranges often separate meeting, eating, sleeping, and hospitality.
- Most plans are practical diagrams of monastic routine, not just architectural drawings.
- Cistercian houses usually emphasize simplicity and separation of work from prayer.
- Unusual plans often reflect local history, later rebuilding, or special devotional needs.
Why the layout matters more than the walls
When I look at a monastery, I do not start with ornament. I start with movement. A good plan shows how monks crossed from choir to cloister, from cloister to refectory, and from communal space to private rest without wasting steps or breaking silence. The most revealing clue is the gradient from sacred space to service space, because it tells you what the house considered central and what it treated as necessary but secondary.
World History Encyclopedia notes that a typical abbey housed around 100 permanent inhabitants, while large houses could exceed 450. That scale matters: once a monastery reaches that size, layout becomes a discipline in itself, separating liturgy, study, sleep, food, storage, and hospitality so the community can function without friction.
In other words, the plan is not decorative background. It is the physical shape of the rule. Once that clicks, the individual rooms make a lot more sense.
The rooms that shape daily monastic life
The standard cloistered house revolves around a few rooms that recur across many medieval foundations. I find it easiest to read them as a chain of purpose rather than as isolated buildings.
| Space | What it did | Why its position mattered |
|---|---|---|
| Church | Held the liturgy, choir offices, Mass, and the most solemn parts of daily worship. | Usually anchored the north side of the cloister and set the spiritual axis of the whole house. |

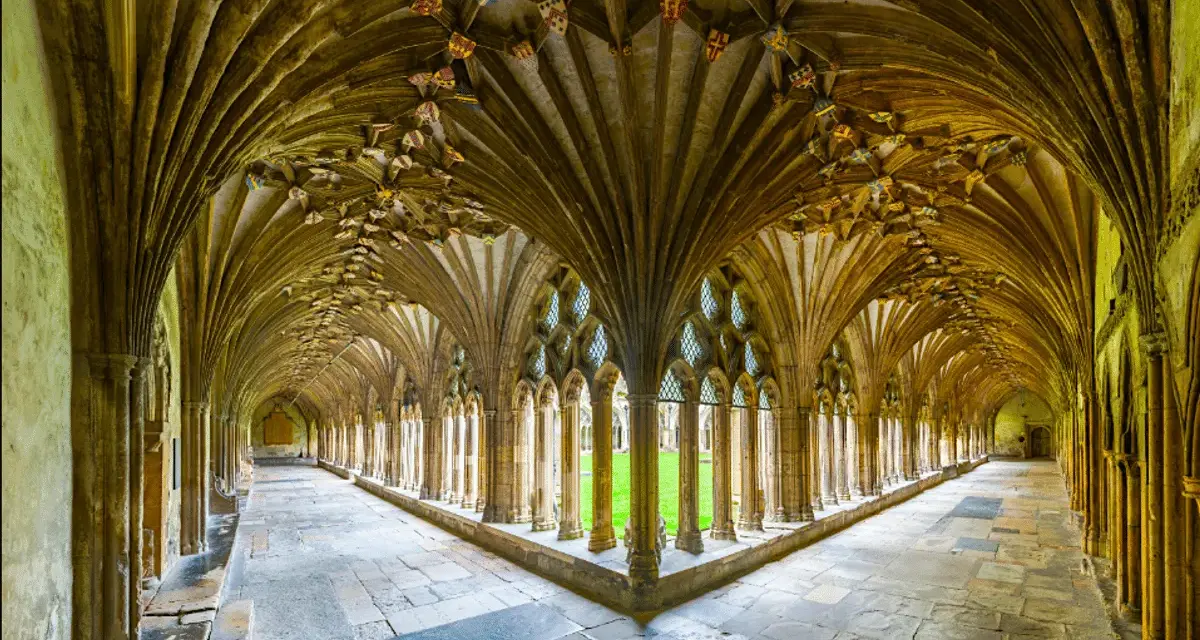

| Cloister | Provided a covered walk and an inner garden for quiet movement, reading, and contemplation. | Linked the main buildings while preserving enclosure and silence. |
| Chapter house | Hosted the daily meeting where the community heard readings, received instructions, and settled business. | Placed close to the church so prayer and administration stayed connected. |
| Dormitory | Served as the communal sleeping space for monks or nuns. | Often sat above the east range so the community could reach the church quickly for night prayer. |
| Refectory | Was the common dining hall, often paired with reading during meals. | Usually sat on the opposite side of the cloister from the church, where food service was efficient and noise could be controlled. |
| Kitchen | Prepared food and handled the practical work behind meals. | Typically sat between the refectory and outer service access to keep traffic away from the cloister. |
| Scriptorium or library | Supported copying, reading, and study. | Needed relative quiet, good light, and proximity to the intellectual life of the house. |
| Guesthouse or infirmary | Received visitors, pilgrims, or the sick. | Usually sat toward the edge of the enclosure so hospitality did not interrupt the enclosed routine. |
Once you know these functions, even a fragmentary plan becomes readable. A missing wing, a stair, or a doorway can tell you as much as a whole façade. That is where order and variation come into view.
How different orders shaped the plan
The Benedictine model is the best baseline because so many later plans still follow its logic: church, cloister, chapter house, refectory, and dormitory arranged to support a common life. Cistercian houses usually push that logic toward austerity. They keep the same broad structure, but they reduce visual display, separate work buildings more clearly, and avoid unnecessary spatial drama.
That difference matters. A plain plan does not always mean a poor or crude house; often it means the community wanted less distraction and a sharper distinction between prayer and labor. Fontenay is a good visual reminder of that principle, because its layout makes the separation of prayer spaces and working spaces unusually clear.
| Type of house | Typical spatial emphasis | What I would look for |
|---|---|---|
| Benedictine abbey | Balanced cloister system with clear communal circulation. | A standard east range for chapter house and dormitory, a south refectory, and a sheltered inner court. |
| Cistercian abbey | Simpler geometry and a strong preference for functional clarity. | Less ornament, more separation of work, and direct paths that support silence and discipline. |
| Pilgrimage-oriented house | More room for guests, pilgrims, and processional movement. | Guest accommodation that sits just outside the strictest inner life of the monastery. |
| Rebuilt or locally adapted house | Irregular shapes caused by land, burial grounds, patronage, or later expansion. | Missing ranges, shifted axes, or additions that do not fit the textbook scheme. |
According to the University of Reading’s Glastonbury Abbey project, some houses departed sharply from the standard pattern; Glastonbury, for example, lacks the normal west range. I mention that because it prevents a common mistake: assuming every monastery was a neat diagram of an ideal rule. In reality, history always leaves fingerprints on the plan.
How I would read a monastery floor plan step by step
When I study monastery floor plan diagrams, I move in a fixed order. That keeps me from getting lost in labels before I understand the structure.
- First, I find the church and check its orientation. In many medieval houses, the east end matters because liturgy shaped the whole layout.
- Next, I locate the cloister. If the cloister is the center, the rest of the plan usually makes sense relative to it.
- Then I identify the chapter house, refectory, and dormitory. Those three spaces tell me how the community met, ate, and slept.
- After that, I look for service spaces such as the kitchen, stores, latrines, and warming room. These reveal how practical life was hidden behind the spiritual core.
- I then check for guest quarters, an infirmary, or outer courts. If they sit apart from the enclosed core, hospitality was being handled carefully.
- Finally, I compare levels and phases. Upper floors, later rebuilds, and shaded reconstruction lines often matter as much as the ground plan itself.
This way of reading a plan is simple, but it is effective. I am not just asking where the buildings are. I am asking what kind of life the buildings were designed to protect.
Common mistakes when interpreting old diagrams
Old monastic diagrams look straightforward until you start treating them as literal photographs. That is where most misreadings begin.
- Assuming the plan is exact in every detail. Many surviving drawings are idealized, partial, or reconstructed from archaeology.
- Ignoring building phases. A monastery often grew over centuries, so one range may belong to a different period from another.
- Reading every room as equally public. Some spaces were for the whole community, while others were tightly controlled or almost never seen by visitors.
- Forgetting that silence changed circulation. Short corridors and direct links were often deliberate, not accidental.
- Missing the difference between original design and later adaptation. A ruin can preserve several histories at once.
The safest habit is to treat each diagram as a working map of monastic priorities, not as a perfect architectural census. That stance is especially useful when the plan is incomplete or when the site has been altered by centuries of repair and reuse.
What the layout still teaches about monastic life
A monastery becomes easier to understand once the plan is read as a rule made visible. The cloister protects concentration, the chapter house organizes obedience, the refectory disciplines meals, and the dormitory makes sleep part of communal order rather than private retreat.
That is why I always tell readers to look for three things when they encounter a monastic diagram: enclosure, circulation, and separation. Enclosure shows the boundary between the monastery and the world outside. Circulation shows how the community moved through the day. Separation shows what had to stay quiet, hidden, or distinct for the rule to work.
Read that way, the layout is not just an architectural record. It is a compact statement of monastic life itself: disciplined, communal, and intentionally ordered.
